Used
From time to time we have units that are available for sale. If you would like more information, please contact us.

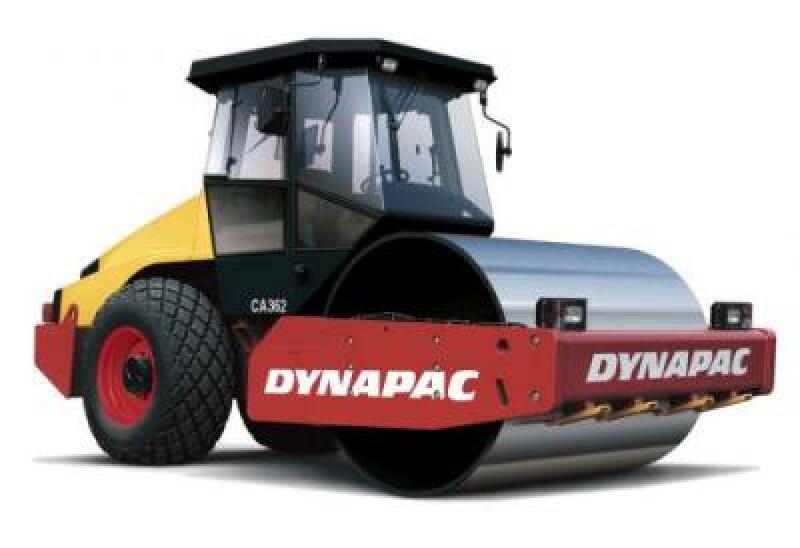

CA362D Dynapac
1 IN STOCK
MAX OPERATING WEIGHT - 33 079 lb COMPACTION WIDTH - 84 in GROSS POWER - 150 hp
SPECIFICATIONS
MASSES
Operating mass (incl. ROPS) 29 101 lb
Module mass (front/rear) 18 078/ 11 023 lb
Max. operating mass 33 079 lb
TRACTION
Speed range (Dual/TC/AS) 0-9
Tyre size (8 ply) 23,1x26
Theor. gradeability 55 %
Vertical oscillation ±9°
COMPACTION
Static linear load 85 lb/cm
Nominal amplitude (high/low) 1.7 mm/ 0.8 mm
Vibration frequency (high/low amplitude) 33 Hz/ 33 Hz
Centrifugal force (high/low amplitude) 300 kN/ 146 Kn
ENGINE
Manufacturer/Model Cummins QSB6.7 T3
Type Water cooled turbo Diesel
Rated power, SAE J1995 112 kW (150.0 hp ) @ 2200 rpm
Fuel tank capacity 320 l
HYDRAULIC SYSTEM
Driving Axial piston pump with variable displacement.
Axial piston motor with constant displacement.
Axial piston motor with constant displacement.
Vibration Axial piston pump with variable displacement.
Axial piston motor (2) with variable displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in drum gear box and in rear axle.
DIMENSIONS
Height with ROPS 9 ft 9 in
Overall Length 18 ft 11 in
Overall width 7 ft 10 in
