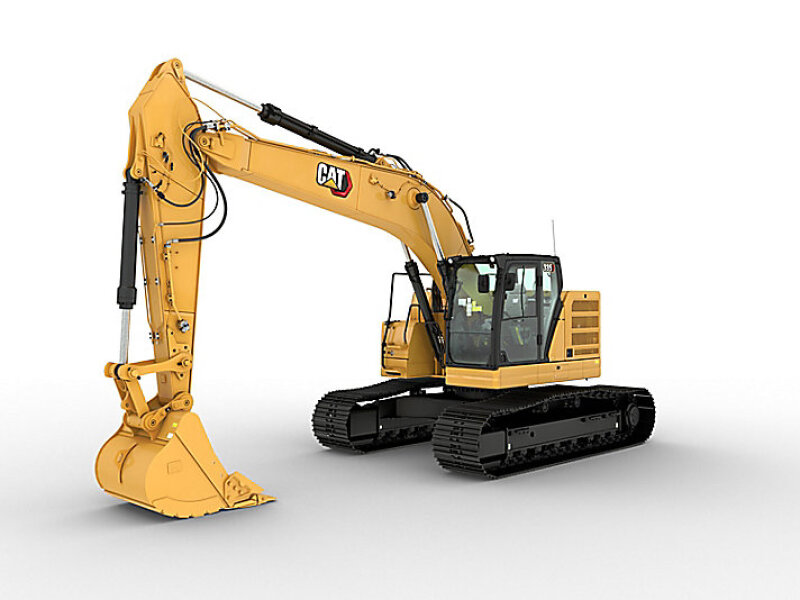

335 Caterpillar
1 IN STOCK
GROSS POWER - 275 hp OPERATING WEIGHT - 77 000 lb DIGGING DEPTH - 22 ft
SPECIFICATIONS
ENGINE
Engine Model C7.1
Net Power - ISO 9249 273 hp
Gross Power - ISO 14396 275 hp
Bore 4 in
Stroke 5 in
Displacement 7.01 l
WEIGHTS
Operating Weight 77 000lb
HYDRAULIC SYSTEM
Main System - Maximum Flow 560 l/min
Maximum Pressure - Equipment 5075 psi
Maximum Pressure - Travel 5075 psi
Maximum Pressure - Swing 4181 psi
SWING MECHANISM
Swing Speed 10.8 rpm
Maximum Swing Torque 79 455 lb ft
SERVICE REFILL CAPACITIES
Fuel Tank Capacity 368 l
Cooling System 13 l
Engine Oil - With Filter 25 l
Swing Drive - Each 11 l
Final Drive – Each 7 l
Hydraulic System - Including Tank 350 l
Hydraulic Tank 154 l
DEF Tank 26 l
DIMENSIONS
Boom Reach 6.15 m (20'2")
Stick R3.2CB2 (10’6”)
Bucket GD 1.54 m³ (2.01 yd³)
Shipping Height 10 ft 11 inches
Shipping Length 32 ft 3 in
Tail Swing Radius 6 ft 4 in
Counterweight Clearance 1 ft 9 in
Track Length to Center of Rollers 13 ft 4 in
Track Gauge 9 ft
Transport Width 10 ft 2 in
WORKING RANGES & FORCES
Maximum Digging Depth 22 ft 2 in
Maximum Reach at Ground Level 34 ft 2 in
Maximum Cutting Height 36 ft 9 in
Maximum Loading Height 26 ft 2 in
Minimum Loading Height 9 ft 9 in
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 22 ft 6 in
Maximum Vertical Wall Digging Depth 19 ft
