Rentals
Rent from us and get reliable equipment for any job. We carry a full line of new and late model Caterpillar and Dynapac units..
- Articulated Trucks
- Backhoes
- Compaction, Pull Type Pneumatic Roller
- Dozer, Large
- Dozer, Medium
- Dozer, Small
- Excavator, Large
- Excavator, Medium
- Excavator, Mini
- Graders
- Loader, Crawler
- Loader, Wheel
- Compaction, Single Drum Vibratory Rollers
- Compaction, Double Drum Vibratory Rollers
- Compaction, Soil
- Mobile Feeder
- Compaction, Pneumatic Roller

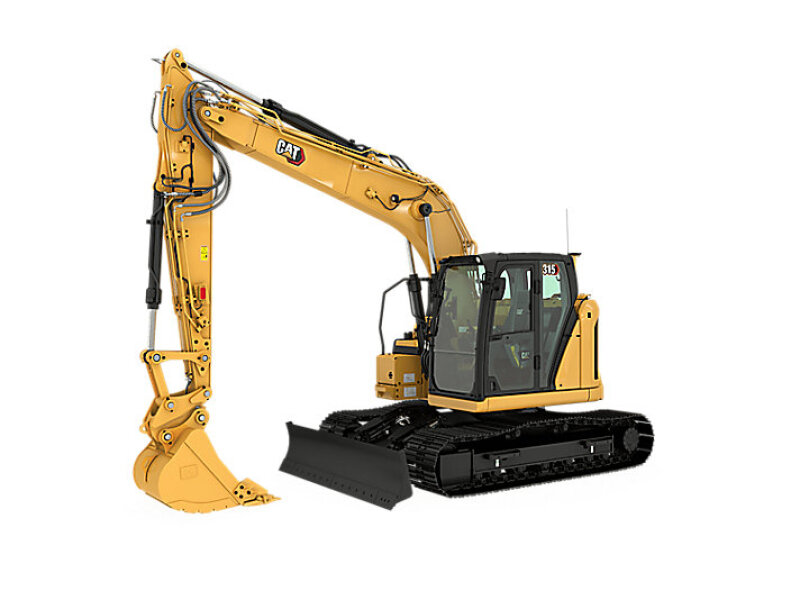

315 Caterpillar
0 IN STOCK
GROSS POWER - 108 hp OPERATING WEIGHT - 34 000 lb DIGGING DEPTH - 19 ft 7 in
SPECIFICATIONS
ENGINE
Engine Model Cat C3.6
Rated Net Power 108 hp
Bore 4 in
Stroke 5 in
Displacement 3.6 l
WEIGHTS
Operating Weight - With Cab 34,000 lb
HYDRAULIC SYSTEM
Main System – Maximum Flow 276 l/min
Maximum Pressure – Equipment 5075 psi
Maximum Pressure - Travel 5075 psi
Maximum Pressure – Swing 3770 psi
SERVICE REFILL CAPACITIES
Cooling System 15 l
Engine Oil 8 l
Hydraulic Tank 72 l
Fuel Tank 187 l
Hydraulic System – Including Tank 85 l
DEF Tank 21 l
Final Drive – Each 3 l
DIMENSIONS
Transport Width 8 ft 1 in
Shipping Height – Top of Cab 9 ft 2 in
Track Length 12 ft 4 in
Shipping Length 24 ft 8 in
Shipping Length – With Blade 26 ft 6 in
WORKING RANGES
Boom - Reach 15 ft 4 in
Stick - Reach 9 ft 10 in
Bucket 0.69 yd³
Maximum Digging Depth 9 ft 7 in
Maximum Reach at Ground Level 28 ft 6 in
Maximum Cutting Height 31 ft 8 in
Maximum Loading Height 23 ft 6 in
Maximum Vertical Wall Digging Depth 16 ft 11 in
