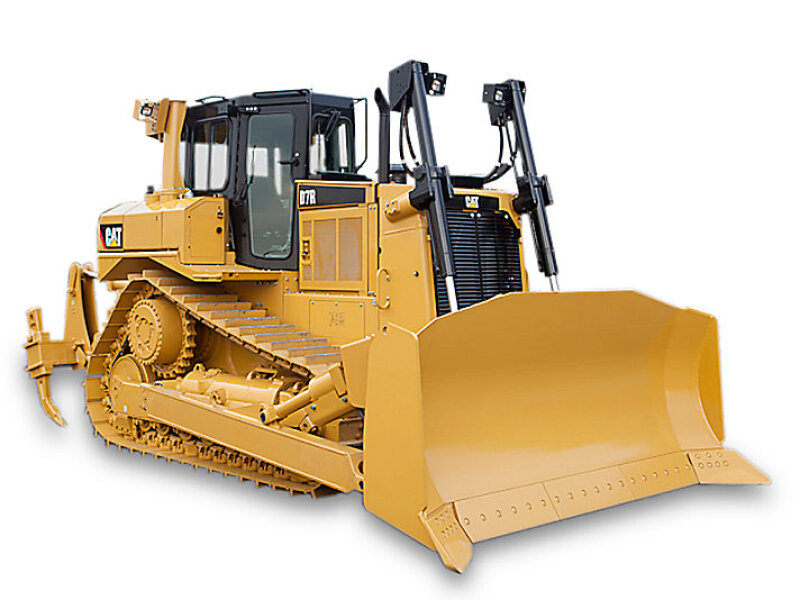

D7R XR Caterpillar
1 IN STOCK
ENGINE MODEL - Cat 3176C GROSS POWER - 258 hp OPERATING WEIGHT - 60 236 lb
SPECIFICATIONS
ENGINE
Engine Model Cat 3176C
Net Power - Rated - ISO 9249 240 hp
Gross Power 258 hp
Bore 4.9 in
Stroke 5.5 in
Displacement 10.3 l
- Maximum Power at 2100 rpm
-Net power advertised is the power available at the flywheel when engine is equipped with a fan at maximum speed, air cleaner, muffler and alternator.
-No deratings required up to 2286 m (7,500 ft) altitude, beyond 2286 m (7,500 ft) automatic derating occurs.
WEIGHTS
Operating Weight XR 60 236 lb
Shipping Weight XR 46 752 lb
-Operating weight includes lubricants, coolant, full fuel tank, standard track, ROPS cab, hydraulic controls, A blade, drawbar and operator.
-Shipping weight includes lubricants, coolant, 10% fuel tank, standard track, ROPS cab and hydraulic controls.
TRANSMISSION
Forward 1 3.52 km/h
Forward 2 6.10 km/h
Forward 3 10.54 km/h
Reverse 1 4.54 km/h
Reverse 2 7.85 km/h
Reverse 3 13.58 km/h
SERVICE REFILL CAPACITIES
Fuel Tank 479 L
Cooling System 77.4 L
Engine Crankcase 31 L
Power Train 178 L
Final Drives (each) 13 L
Roller Frames (each) 24.6 L
Pivot Shaft Compartment 1.9 L
Hydraulic Tank 54 L
HYDRAULIC CONTROLS – PUMP
Pump Capacity 1015 psi
Pump Output 295 l/min
Lift Cylinder Flow 180 l/min
Tilt Cylinder Flow 80 l/min
Ripper Cylinder Flow 180 l/min
- Pump speed at 2231 rpm
- Pump specifications at rated engine speed.
HYDRAULIC CONTROLS – MAIN RELIEF VALVE
Pressure Setting 6,092 psi
HYDRAULIC CONTROLS – MAXIUMUM OPERATING PRESSURE
Bulldozer 3307 psi
Bulldozer, Tilt 2498 psi
Ripper, Lift 3300 psi
Ripper, Pitch 3300 psi
Steering 5511 psi
BLADES
A- Blade Capacity 5.08 yd3
A- Blade Width 14.77 ft
RIPPER
Type Adjustable Parallelogram
Number of Pockets 3
Weight with One Shank 7431 lb
Added Weight with Each Additional Shank 330 lb
Overall Beam Width 87 in
Maximum Clearance Raised 29.8 in
Maximum Penetration 29.4 in
Maximum Penetration Force 19 100 lb
Pryout Force 38 513 lb
DIMENSIONS
Width of Tractor over Trunnions 9 ft 5 in
Length of Basic Tractor (with drawbar) 15 ft 6 in
Following attachments add:
Ripper (with tip at ground line) 3 ft 11.1 in
Winch 3 ft
Max. Machine Height 11 ft 1 in
