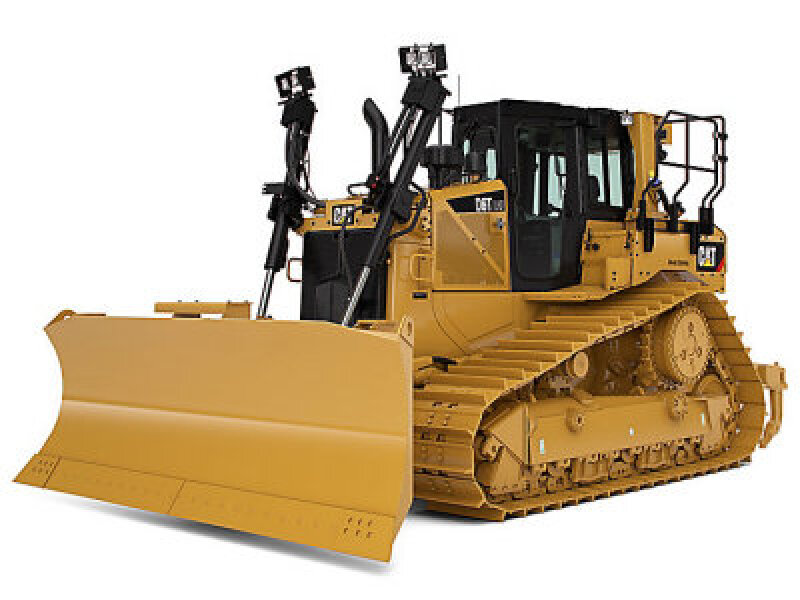

D6T LGP Caterpillar
2 IN STOCK
ENGINE MODEL - C9.3 ACERT GROSS POWER - 254 hp OPERATING WEIGHT - 56 500 lb
SPECIFICATIONS
ENGINE
Engine Model Cat C9.3 ACERT
Engine Power ISO 14396 (DIN) 254 HP
Power – Net Rated
ISO 9249/SAE J1349 (DIN) 209 HP
Power – Net Maximum
ISO 9249/SAE J1349 (DIN) 238 HP
Bore 4.5 in
Stroke 5.9 in
Displacement 9.3 L
Emissions U.S. Tier 4 Interim/ EU Stage IIIB/ Japan MLIT Step 4
- Rated power occurs at 2,000 rpm.
- Maximum power occurs at 1,700 rpm.
- Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan at maximum speed, air cleaner, muffler and alternator.
- No deratings required up to 2286 m (7,500 ft) automatic derating occurs.
- All non road Tier 4, EU Stage IIIB and IV, Japan MLIT Step certified diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required.
TRANSMISSON
1.5 Forward 3.8 km/h 1.5 Reverse 4.8 km/h
2 Forward 5.1 km/h 2 Reverse 6.6 km/h
2.5 Forward 6.6 km/h 2.5 Reverse 8.4 km/h
3 Forward 8.5 km/h 3 Reverse 8.5 km/h
3.5 Forward 11.4 km/h 3.5 Reverse 14.6 km/h
Maximum Drawbar Pull
1.5 Forward 81 430 lb
2 Forward 49 260 lb
2.5 Forward 49 260 lb
3 Forward 26 730 lb
3.5 Forward 26 730 lb
SERVICE REFILL CAPACITIES
Fuel Tank 425 l
Cooling System 64.4 L
Engine Crankcase 24.6 L
Power Train 148 L
Roller Frames (each) 25 L
Final Drives (each) 13.5 L
Hydraulic Tank 65.5 L
Pivot Shaft Compartment 5 L
HYDRAULIC CONTROLS – PRESSURES
Maximum Operating Pressure
Non-VPAT 2800 psi
VPAT 3125 psi
Steering 5800 psi
HYDRAULIC CONTROLS – PUMP
Pump Output
Fan 93 L/min
Implement 205 L/min
Steering 195 L/min
Lift Cylinder Flow 190 L/min
Tilt Cylinder Flow 110 L/min
Ripper Cylinder Flow 190 L/min
Angle Cylinder Flow – VPAT 170 L/min
RIPPER
Type Fixed Parallelogram
Ramp Angle 26 Degrees
Pocket Spacing 39.4 in
Shank Gauge 78.8 in
Shank Section 2.9 in x 6.9 in
Number of pockets 3
Overall Beam Width 87 in
Beam Cross Section 8.8 in x 10in
Maximum Clearance, Raised 20.2 in
Maximum Penetration Force 14 557 lb
Maximum Pryout Force 19 600 lb
Maximum Penetration 19.7 in
Weight
With One Shank 3606 lb
Each Additional Shank 163 lb
WEIGHTS - LGP VPAT
Operating Weight 53 651 lb
Shipping Weight 48 521 lb
- Operating weight includes blade, lubricants, coolant, full fuel tank, standard track, ROPS/FOPS cab, drawbar and operator.
- Shipping weight includes blade lift cylinders (C-frame for VPAT), lubricants, coolant, ROPS/FOPS cab, standard track and 10% fuel.
BLADES - VPAT LGP
Capacity 6.65 yd3
Width 13.7 ft
WINCH
Winch Model PA56
Winch Drive Mechanical
Control Electric
Weight 2652 lb
Oil Capacity 67 L
Increased Tractor
LGP 14.4 in
Drum Diameter 10 in
Rope Diameter - Recommended 0.88 in
Drum Capacity
0.88 in 281 ft
1 in 218 ft
Cable Ferrule Size (O.D. × Length) 2.1 in x 2.6 in
Maximum Bare Drum
Line Pull 89 800 lb
Line Speed 130 ft/min
Maximum Full Drum
Line Pull 76 300 lb
Line Speed 224 ft/min
DIMENSIONS - LGP
Height – Tip of Grouser to ROPS* 10 ft 6 in
Height – Tip of Grouser to top of Sweeps* 10 ft 8 in
Length - Track on Ground 10 ft 8 in
Length of Basic Tractor 13 ft 11 in
Track Gauge 7 ft 6 in
Width without Trunnions (Standard Track) 10 ft 6 in
Width over Trunnions 11 ft 5 in
Following attachments add:
Ripper Multi-Shank (tip at ground line) 4 ft 6 in
Winch 17 in
