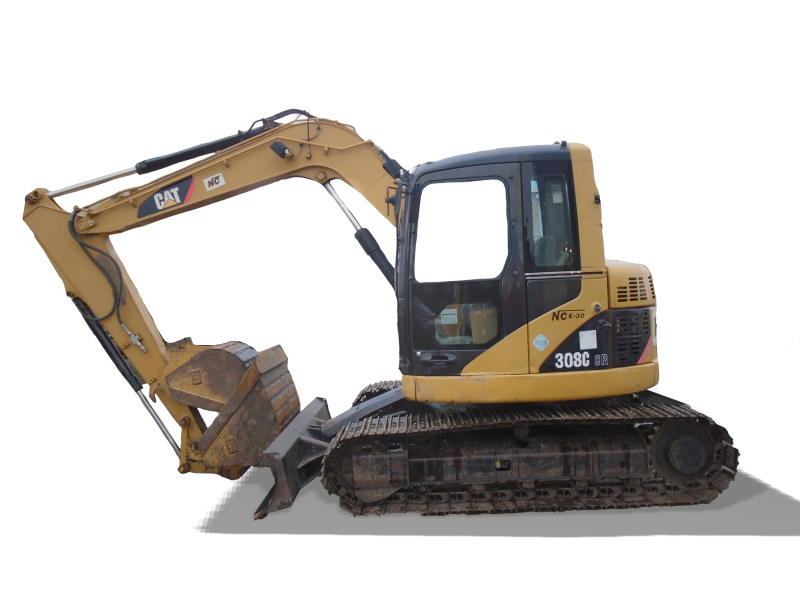

308CL Caterpillar
0 IN STOCK
GROSS POWER - 55 hp OPERATING WEIGHT - 17 730 lb DIGGING DEPTH - 15 ft 5 in
SPECIFICATIONS
ENGINE
Engine Model C4M40E1
Gross Power 55 hp
Bore 3.7 in
Stroke 4 in
Displacement 173 in3
WEIGHTS
Operating Weight 17 730 lb
- Equipped with 2470 mm (8’1”) blade, one -piece boom, 2210 (7’3”) stick, 600 mm (24”) shoes, and 600 mm (24”) bucket.
HYDRAULIC SYSTEM
Main Implement System - Max. Flow (2x) 64 l/min
Max. Pressure - Implements 3980 psi
Max. Presssure - Travel 4550 psi
Max. Pressure - Swing 3480 psi
Pilot System - Max. Flow 18.7 l/min
Pilot System - Max. Pressure 597 psi
Blade - Max. Flow 34 l /min
Blade System - Max. Pressure 2990 psi
SERVICE REFILL CAPACITIES
Cooling System 15 l
Engine Oil 10 l
Fuel Tank 115 l
Swing Drive (each) 1.5 l
Hydraulic System (including tank) 92 l
Hydraulic Tank 55 l
DIMENSIONS
Boom 12 ft 2 in
Stick 7 ft 3 in
Shipping Height 9 ft
Shipping Length 19 ft 2 in
Tail Swing Radius 4 ft 3 in
Length to centers of rollers 7 ft 6 in
Track Length 9 ft 7 in
Ground Clearance 15 in
Track Gauge 6 ft 2 in
Transport
18 in shoes 7 ft 7 in
24 in shoes 8 ft 1 in
WORKING RANGES
Maximum Digging Depth 15 ft 5 in
Maximum Reach at Ground Level 22 ft 3 in
Maximum Cutting Height 25 ft 7 in
Maximum Loading Height 18 ft 7 in
Minimum Loading Height 6 ft 9 in
Maximum Depth Cut for 2440 mm (8’) Level Bottom 14 ft 4 in
Minimum Front Swing Radius 7 ft 2 in
Stick Digging Force (SAE) 6880 lb
Bucket Digging Force (SAE) 9840 lb
