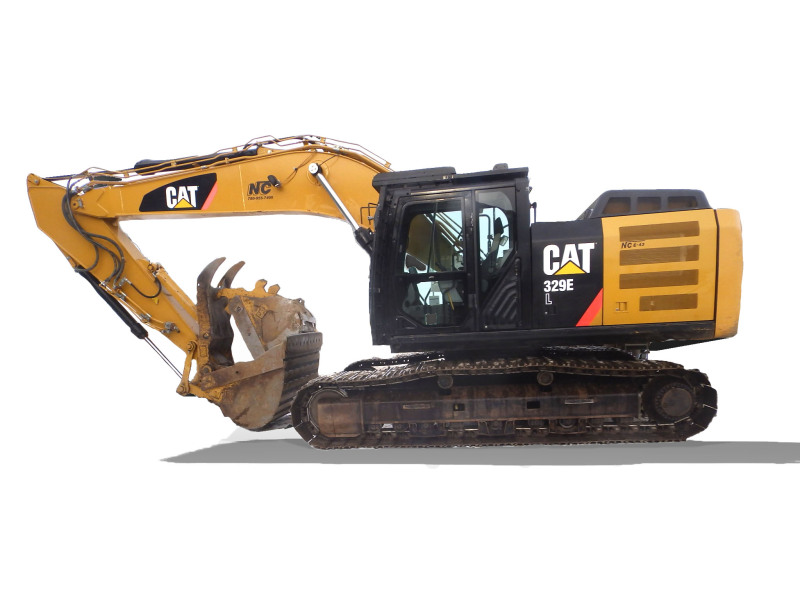

329EL Caterpillar
2 IN STOCK
GROSS POWER - 241 hp OPERATING WEIGHT - 68 958 lb DIGGING DEPTH - 23 ft 9 in
SPECIFICATIONS
ENGINE
Engine Model Cat C7.1 ACERT
Net Power - ISO 9249 228 hp
Gross Power - SAE J1995 241 hp
Bore 4.13 in
Stroke 5.31 in
Displacement 7.01 l
WEIGHTS
Operating Weight 68 958 lb
-SLR boom, 7.85 m stick, 6.75 mt counterweight, 0.6 m3 bucket, 800 mm shoes.
HYDRAULIC SYSTEM
Main System - Maximum Flow (total) 494 l/min
Maximum Pressure - Equipment Heavy Lift 5511 psi
Maximum Pressure - Equipment Normal 5076 psi
Maximum Pressure - Travel 5076 psi
Maximum Pressure - Swing 3989 psi
Pilot System – Maximum Flow 23.1 l/min
Pilot System Maximum Pressure 569 psi
Boom Cylinder – Bore 6 in
Boom Cylinder – Stroke 55 in
DRIVE
Maximum Travel Speed 5.1 km/h
Maximum Drawbar Pull 55 977 lbf
SWING MECHANISM
Swing Speed 9.8 rpm
Maximum Swing Torque 60 628 lbf
SERVICE REFILL CAPACITIES
Fuel Tank Capacity 520 l
Cooling System 44 l
Engine Oil - With Filter 22.5 l
Swing Drive - Each 10 l
Final Drive - Each 6 l
Hydraulic System - Including Tank 310 l
Hydraulic Tank 155 l
DIMENSIONS
Boom Reach 6.15 m (20'2")
Stick Reach R3.2CB2 (10’6”)
Shipping Height 11 ft 1 in
Shipping Length 34 ft 1 in
Tail Swing Radius 10 ft
Counterweight Clearance 3ft 9 in
Ground Clearance (long undercarriage) 1 ft 7 in
Track Length (long undercarriage) 15 ft 11 in
Length to Center of Rollers (long undercarriage) 13 ft 1 in
Track Gauge (long undercarriage) 8 ft 6 in
Transport Width MAX - 800 mm Shoes 11 ft 1 in
WORKING RANGES
Maximum Digging Depth 23 ft 9 in
Maximum Reach at Ground Level 35 ft
Maximum Cutting Height 32 ft 10 in
Maximum Loading Height 22 ft 10 in
Minimum Loading Height 7 ft 6 in
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 23 ft 3 in
Maximum Vertical Wall Digging Depth 19 ft 7 in
