Rentals
Rent from us and get reliable equipment for any job. We carry a full line of new and late model Caterpillar and Dynapac units..
- Articulated Trucks
- Backhoes
- Compaction, Pull Type Pneumatic Roller
- Dozer, Large
- Dozer, Medium
- Dozer, Small
- Excavator, Large
- Excavator, Medium
- Excavator, Mini
- Graders
- Loader, Crawler
- Loader, Wheel
- Compaction, Single Drum Vibratory Rollers
- Compaction, Double Drum Vibratory Rollers
- Compaction, Soil
- Mobile Feeder
- Compaction, Pneumatic Roller

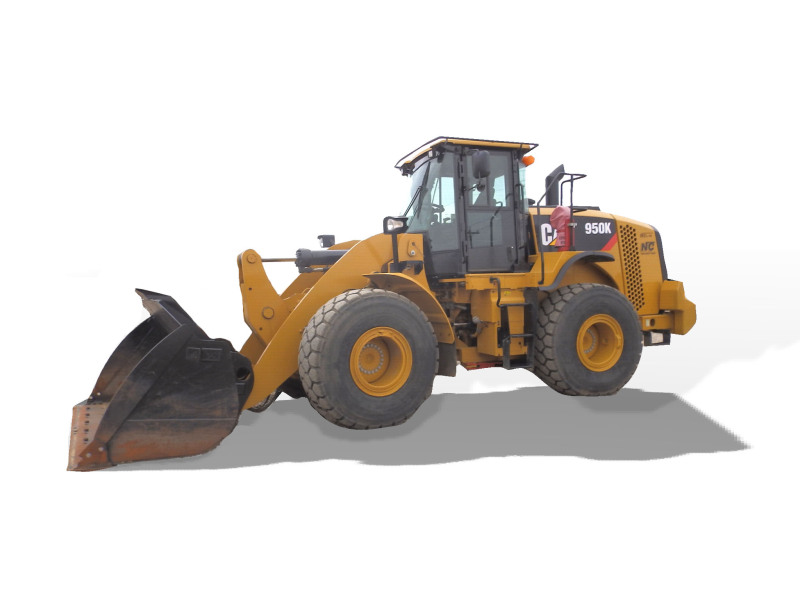

950K Caterpillar
1 IN STOCK
GROSS POWER - 234 hp OPERATING WEIGHT - 42 811 lb BUCKET CAPACITY - 3.25-12 yd3
SPECIFICATIONS
ENGINE
Engine Model Cat C7.1 ACERT
Max Gross Power @1900 rpm - SAE J1995 234 hp
Max Net Power @1900 rpm - ISO 9249 213 hp
Peak Gross Torque @ 1300 rpm- SAE J1995 777 ft-lb
Peak Net Torque @ 1400 rpm - SAE J1995 729 ft-lb
Bore 4.1 in
Stroke 5.3 in
Displacement 7.01 l
- Caterpillar engine with ACERT™ Technology – meets Tier 4 Interim/Stage IIIB emissions requirements.
WEIGHTS
Operating Weight 42 811 lb
- For 4 yd3 general purpose bucket with BOCE.
BUCKETS
Bucket Capacities 3.25 - 12 yd3
OPERATING SPECIFICATIONS
Breakout Force 36 203 lb
Static Tipping Load, Full 40° Turn (ISO 14397-1)* 24 261 lb
- For 4 yd3 general purpose bucket with BOCE.
TRANSMISSION
Forward - 1 6.9 km/h
Forward - 2 12.9 km/h
Forward - 3 22.7 km/h
Forward - 4 37.9 km/h
Reverse - 1 7.5 km/h
Reverse - 2 14.1 km/h
Reverse - 3 24.8 km/h
Reverse - 4 39.8 km/h
- Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 31 in roll radius.
HYDRAULIC SYSTEM
Steering System Pump Type Piston
Implement System - Max Pump Output (2340 rpm) 340 l/min
Implement System - Max Operating Pressure 3800 psi
Implement System - Optional 3rd and 4th Function
Maximum Flow 280 l/min
Implement System - Optional 3rd and 4th Function
Maximum Pressure 3000 psi
Hydraulic Cycle Time - Raise from Carry Position 5.9 sec
Hydraulic Cycle Time - Dump, at Maximum Raise 1.8 sec
Hydraulic Cycle Time - Lower, Empty, Float Down 2.5 sec
Hydraulic Cycle Time - Total 10 sec
- Cycle time with rated payload.
AXLES
Front Fixed
Rear Oscillating ± 13°
Maximum Single-Wheel Rise and Fall 18.9 in
SERVICE REFILL CAPACITIES
Fuel Tank - Standard 314 l
Cooling System 60 l
Crankcase 18 l
Transmission 43 l
Differential - Final Drives – Front 43 l
Hydraulic Tank 189 l
- All non-road Tier 4/Stage IIIB and IV, and Japan (MLIT) Step 4 diesel engines are required to use:
– Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications.
– Cat® DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required.
DIMENSIONS
Height to Top of ROPS/FOPS 11 ft
Center Line of Rear Axle to Edge of Counterweight 6 ft 3 in
Wheel Base Length 10 ft 11 in
Width Over Tires - Max 8 ft 11 in
